特點與用途/Features & Applications

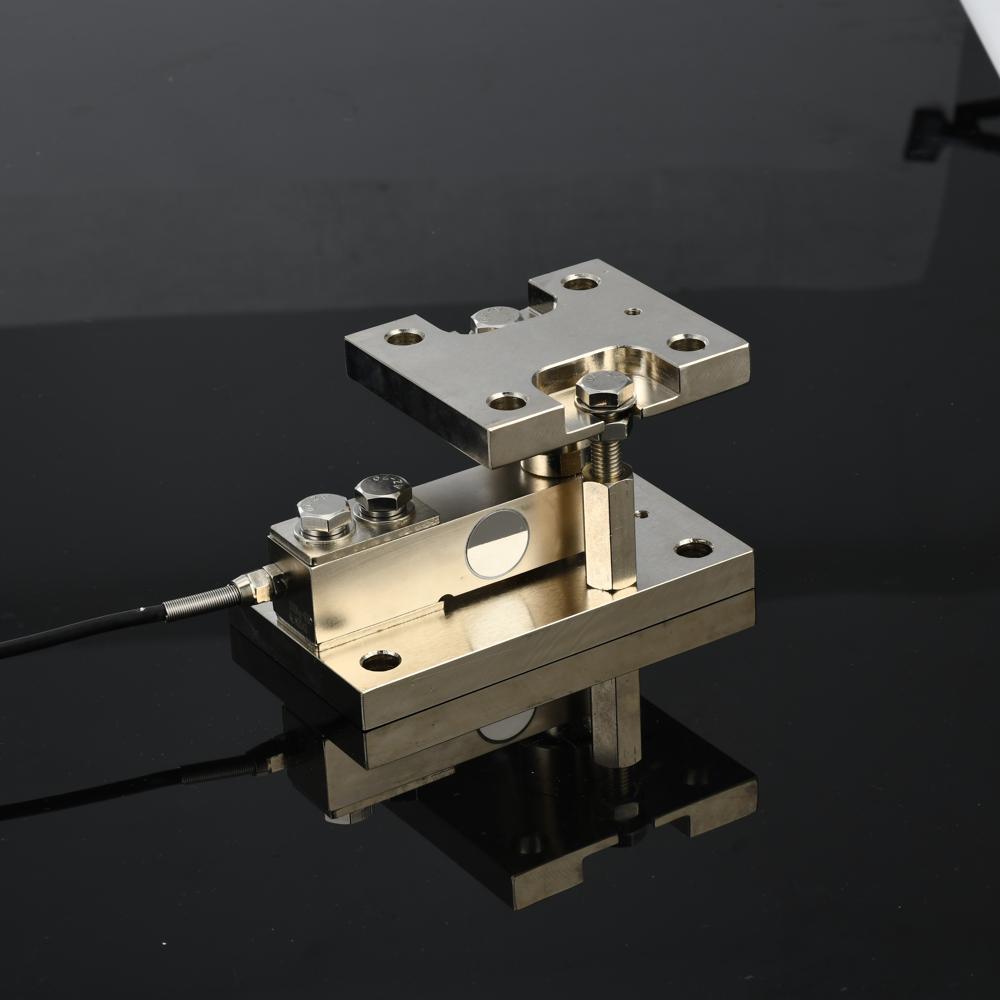

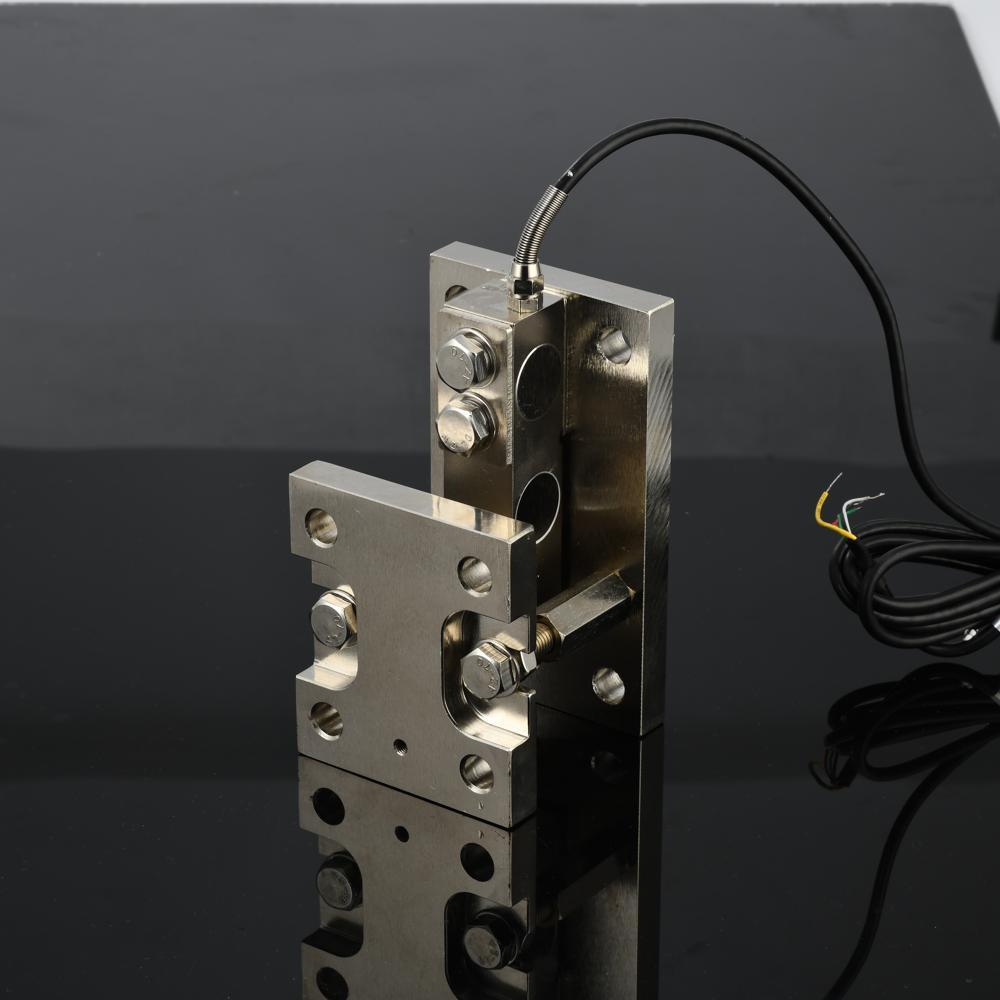

波紋管傳感器模塊
合金鋼材料
用于試驗機，汽車衡，料斗秤，各種工業稱重系統等
|
參數 |
Specifications |
技術指標/Technique |
|
額定容量 |
Capacity |
100kg~5000kg |
|
輸出靈敏度 |
Rated output |
2.0±1%mV/V |
|
零點輸出 |
Zero balance |
±1% F.S. |
|
非線性 |
Non-linearity |
0.05%F.S. |
|
滯后 |
Hysteresis |
0.03%F.S. |
|
重復性 |
Repeatability |
0.03%F.S. |
|
蠕變（30min） |
Creep(30min) |
0.03%F.S. |
|
溫度靈敏度漂移 |
Temp.effect on output |
0.05%F.S./10℃ |
|
零點溫度漂移 |
Temp.effect on zero |
0.05%F.S./10℃ |
|
輸入電阻 |
Input impedance |
380±10Ω |
|
輸出電阻 |
Output impedance |
300±5Ω |
|
絕緣電阻 |
Insulation |
≥5000MΩ/100VDC |
|
激勵電壓 |
Recommended excitation |
5~15V |
|
溫度補償范圍 |
Compensated temp range |
-10~40℃ |
|
工作溫度范圍 |
Operation temp range |
-10~70℃ |
|
安全超載 |
Safe overload |
150%F.S. |
|
極限超載 |
Ultimate overload |
200%F.S. |
